Route 55 / HOAG Hospital
Retaining Wall & RCP Pipe Repair
Photo 1 of 3
- Client
- Caltrans District 12
- Location
- SR-55, Newport Beach, California
Restoring a Damaged Drainage Line Beneath a Retaining Wall

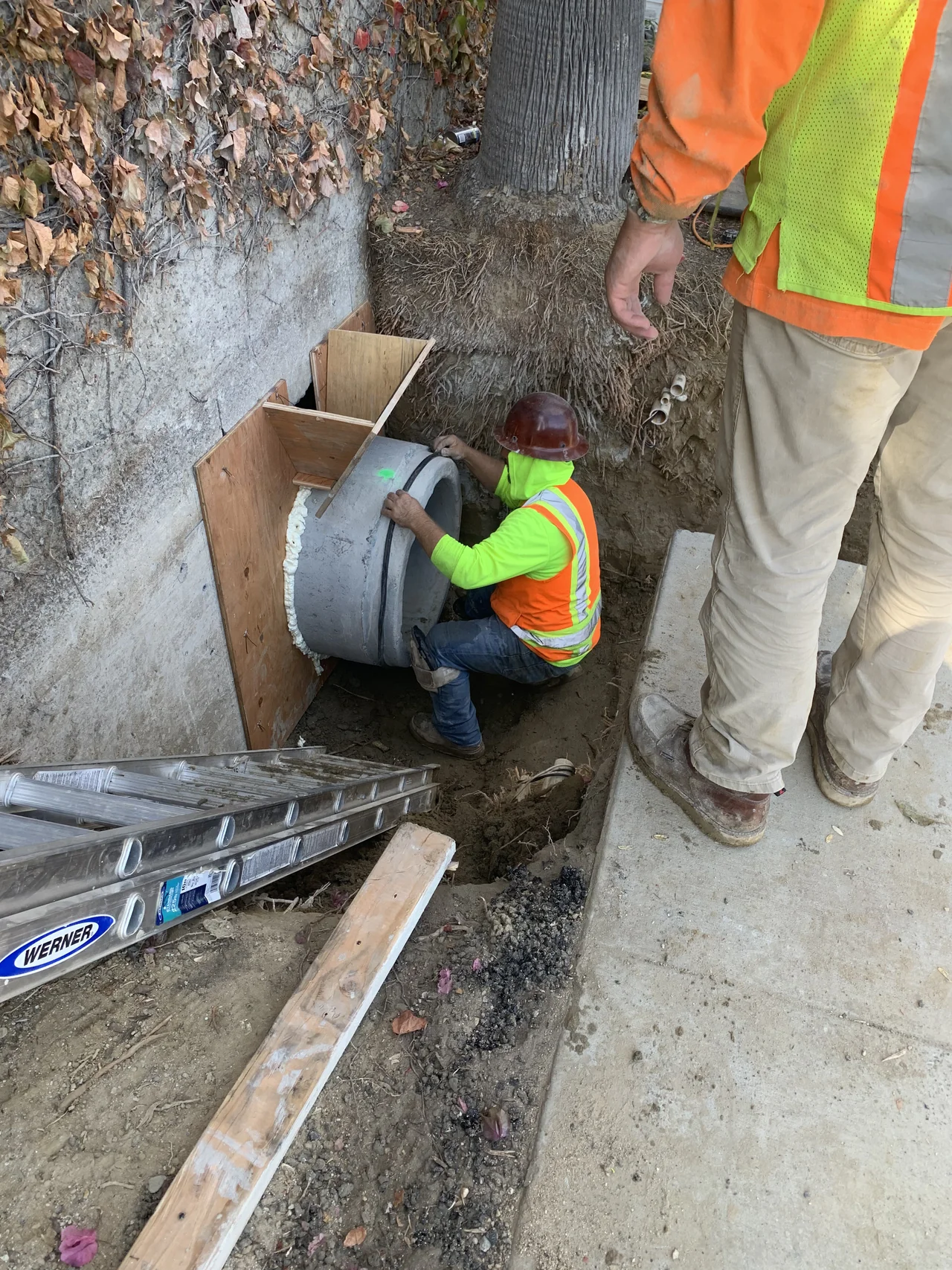

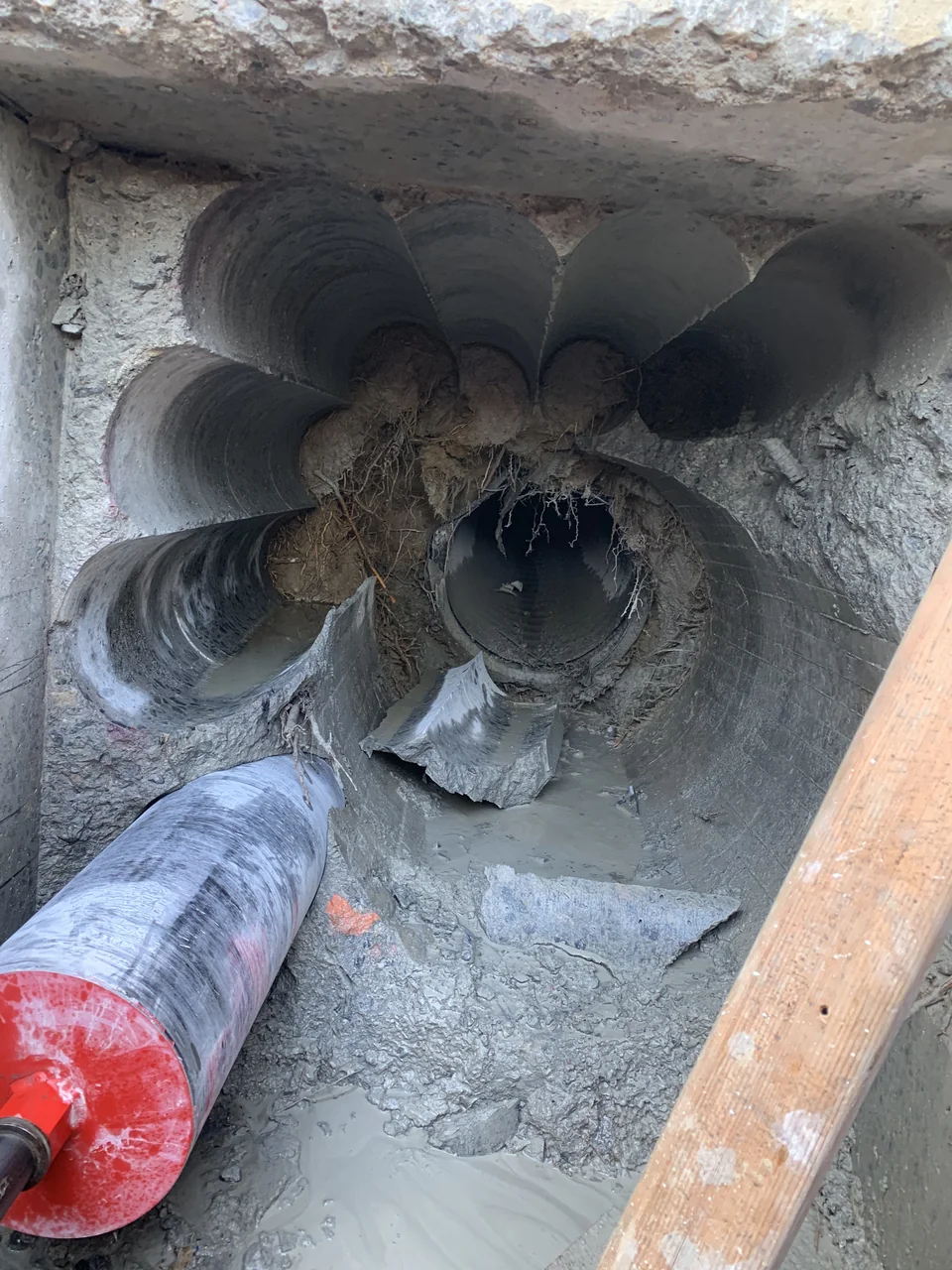

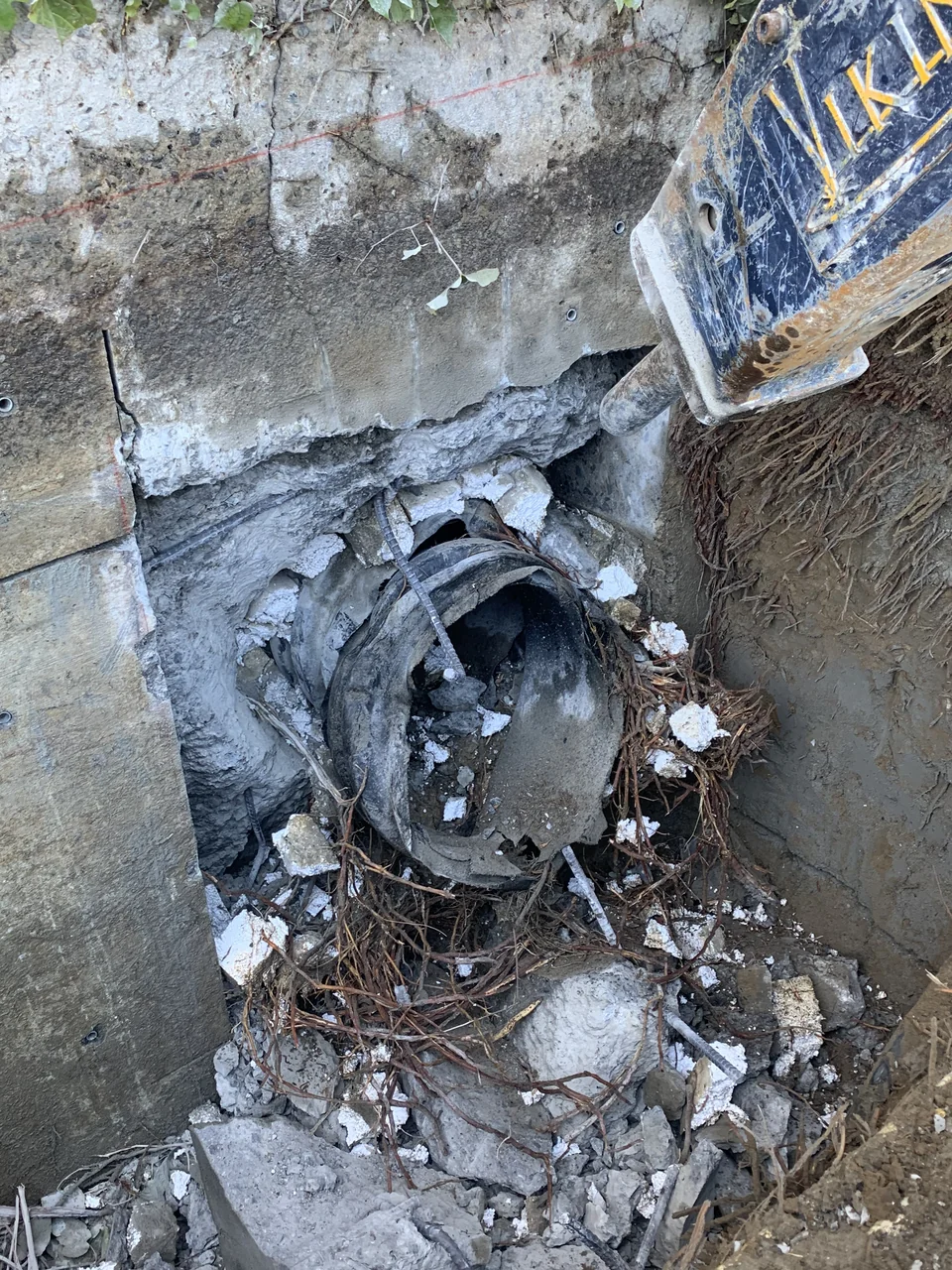

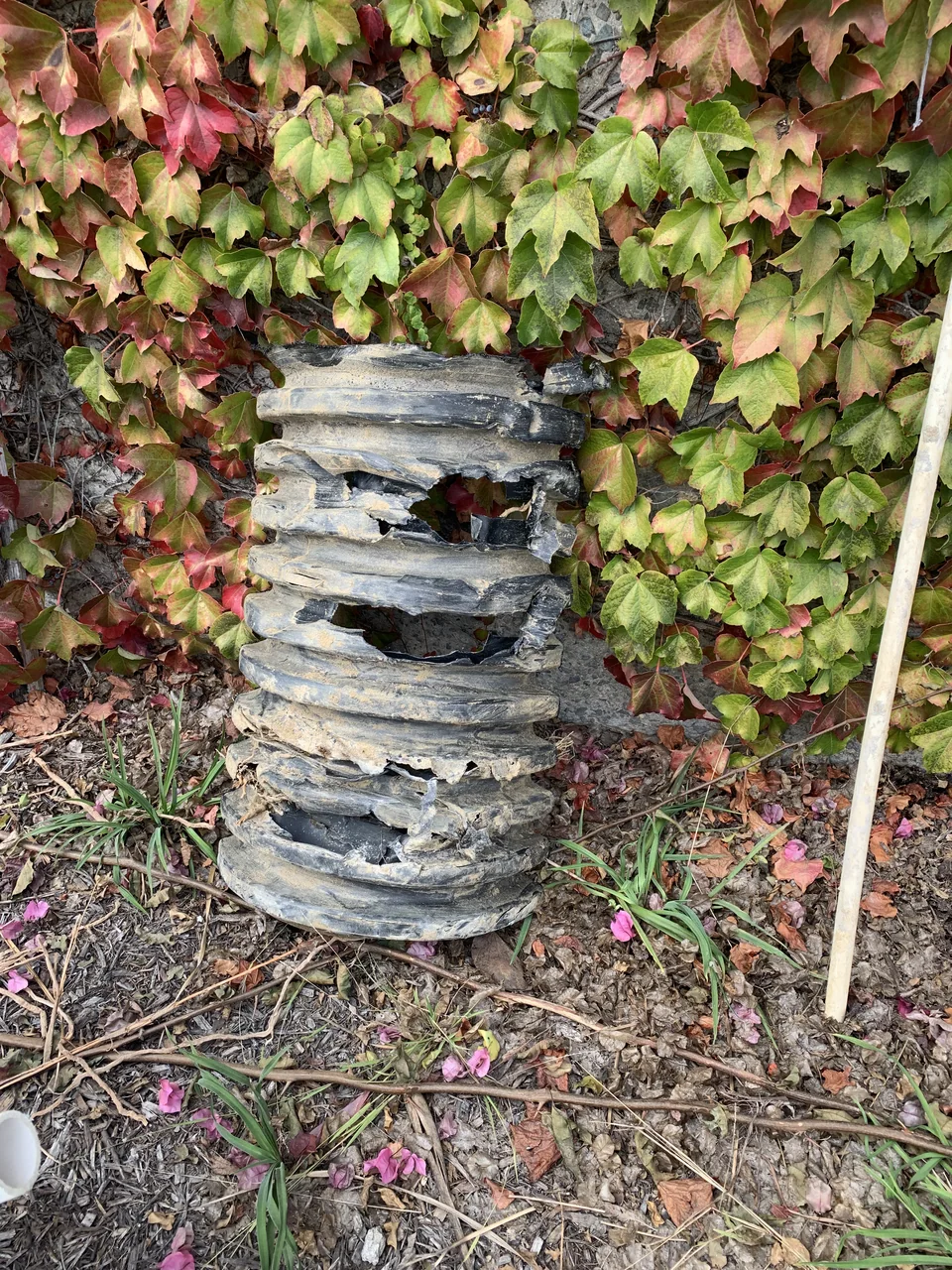

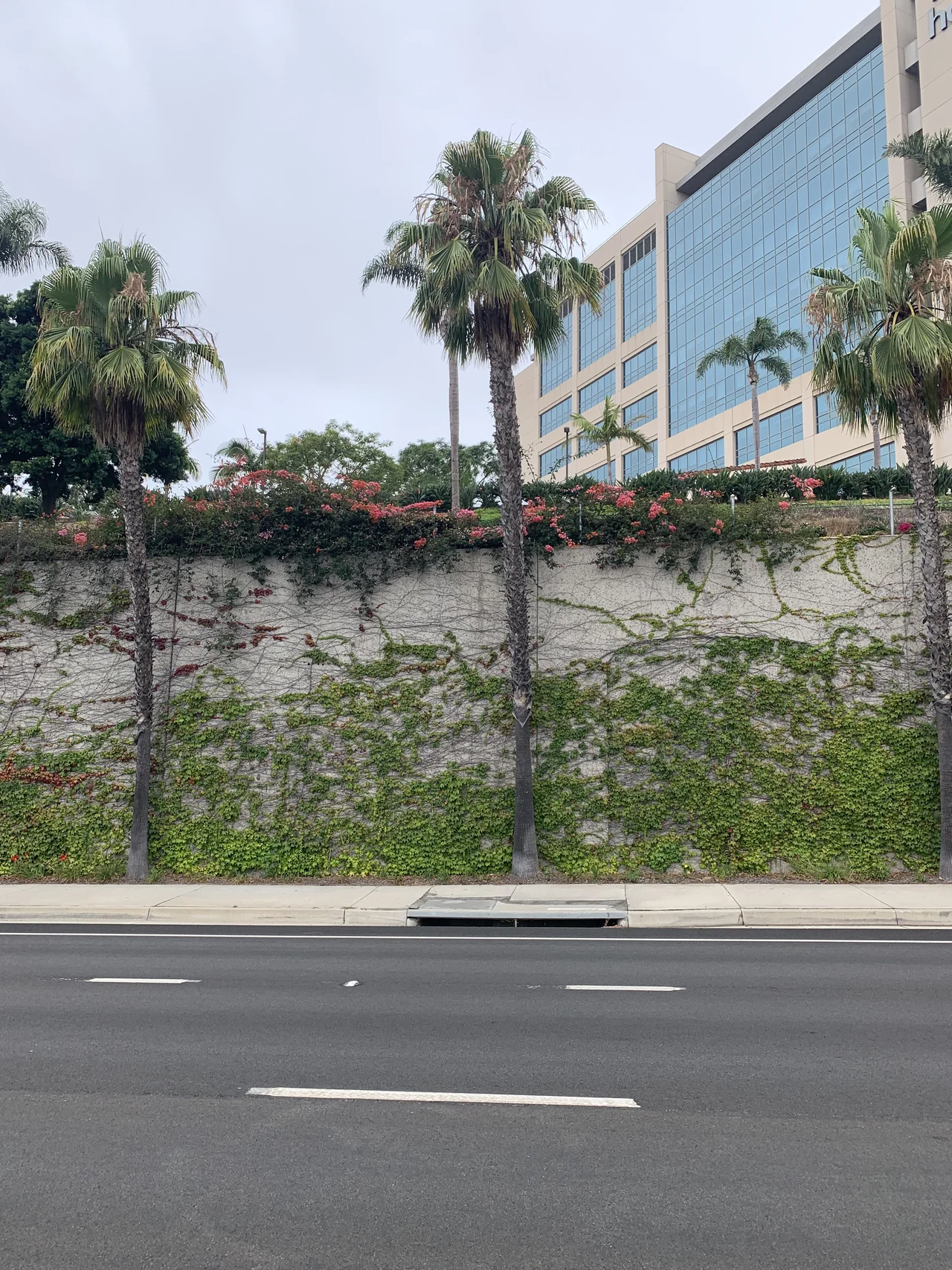

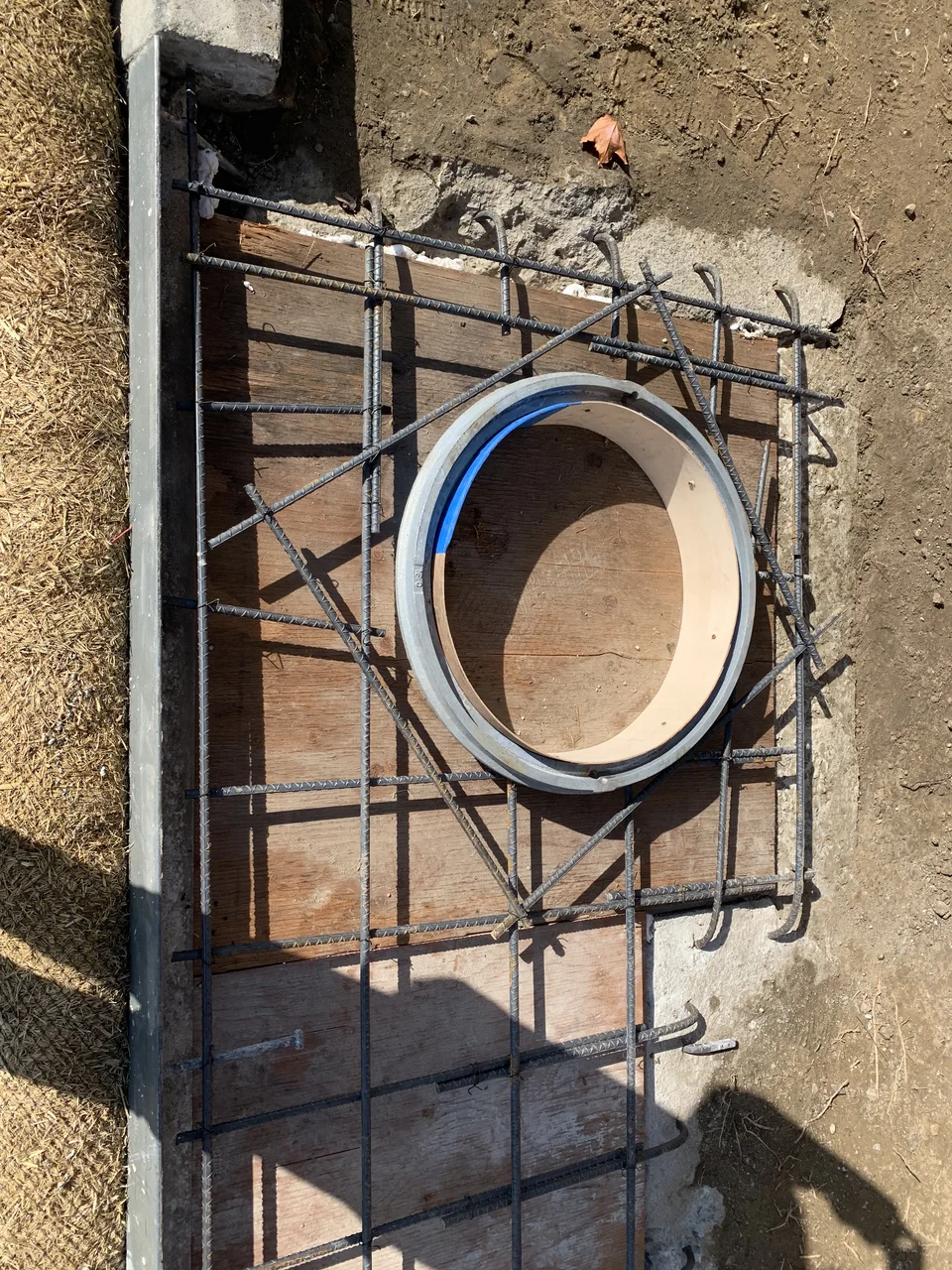

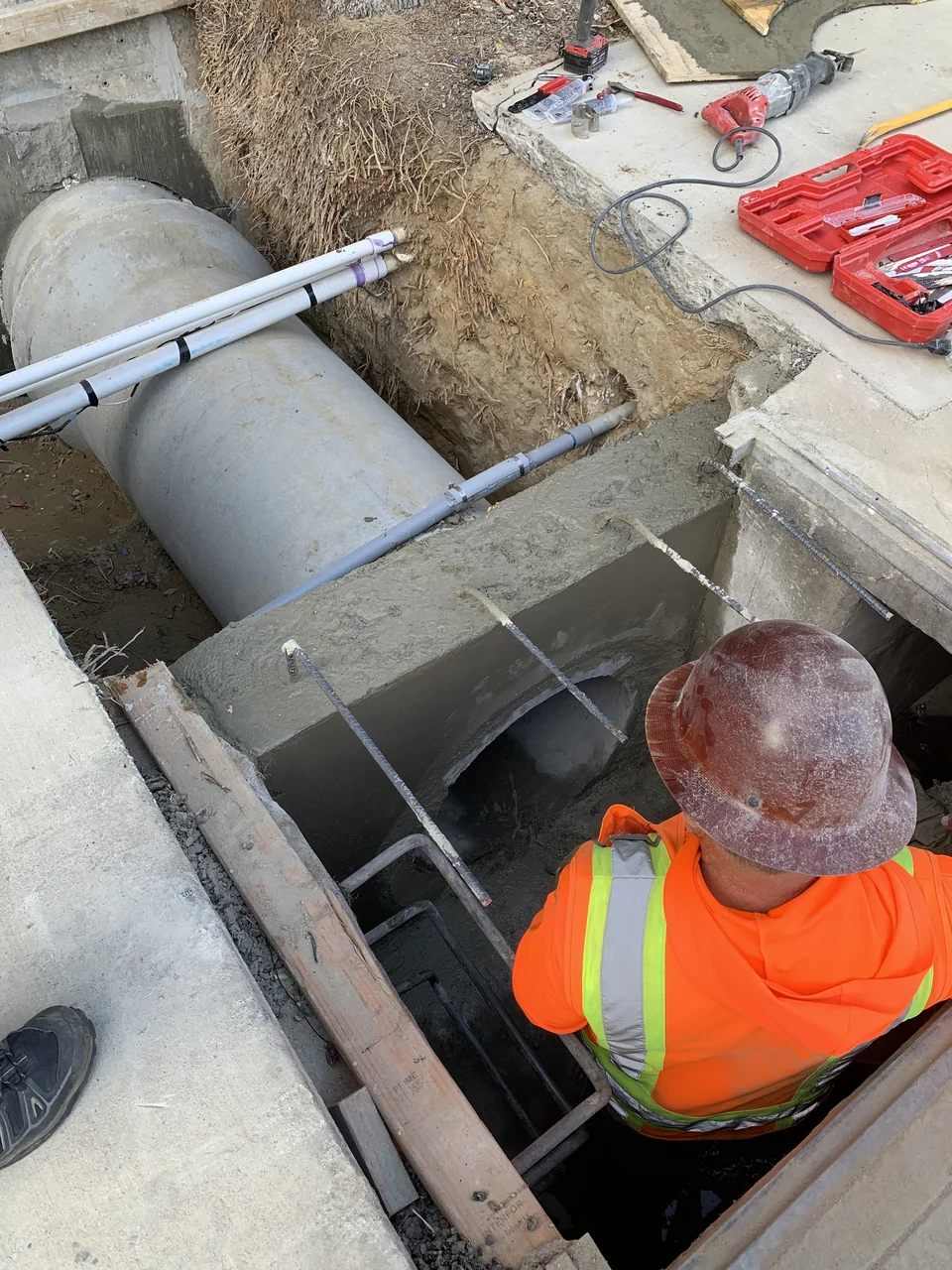

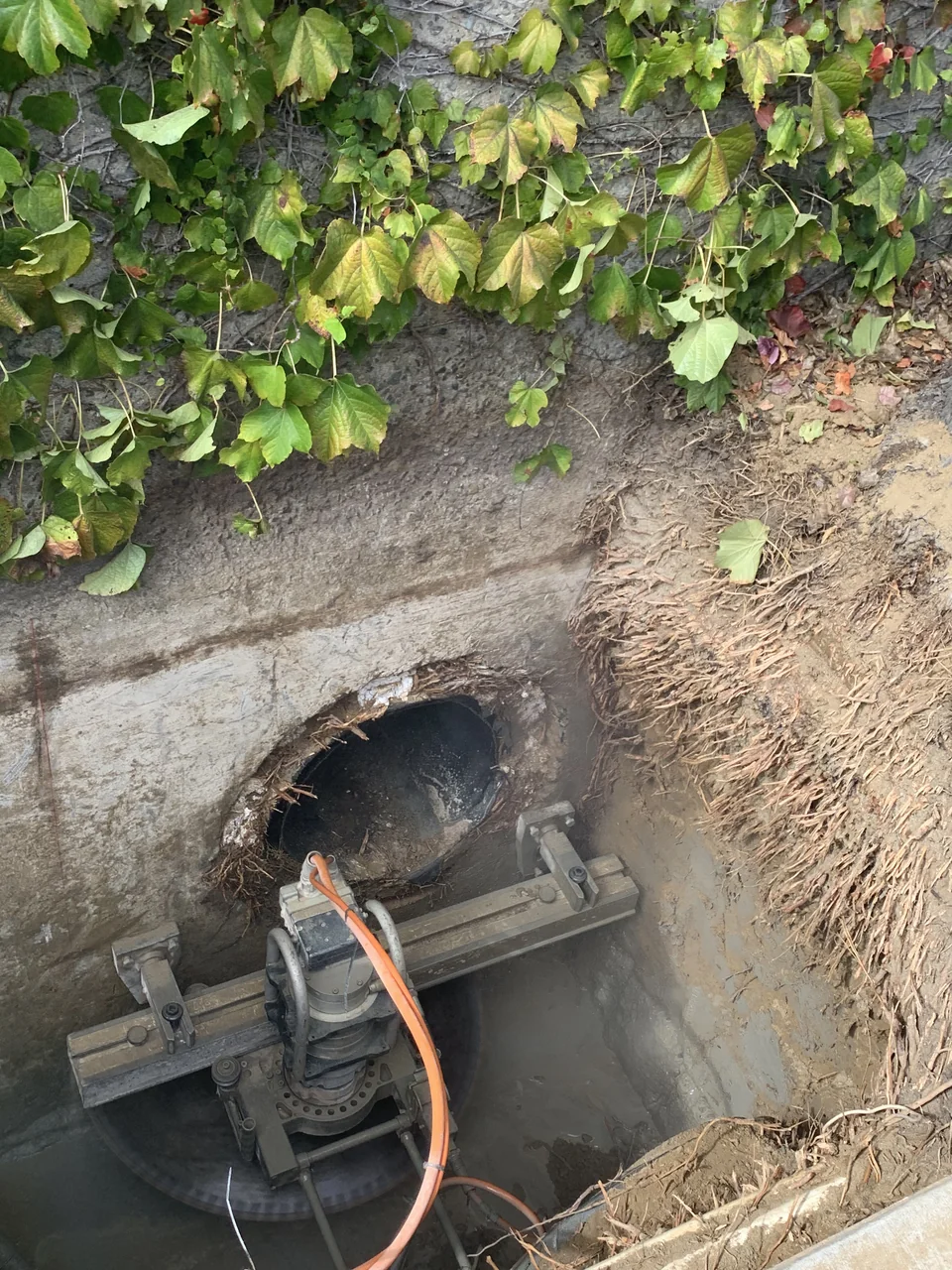

A damaged drainage pipe under a 60-foot retaining wall along southbound SR-55, near Hoag Hospital, was putting the wall and the roadway at risk. Flo Engineering removed about 10 feet of damaged pipe and installed new 18-inch reinforced concrete pipe (RCP), securing the connection with a concrete collar. Crews then restored the drainage inlet lid and backfilled with slurry to stabilize the base of the retaining wall. All work was completed under active traffic control. This was Flo Engineering's first emergency project directly supporting a hospital.
- Contract:
- 12-0U6404
- Start:
- 10/15/23
- End Date:
- 10/31/23
Highlights
FLO removed the damaged pipe and replaced it with new 18" RCP piping and a concrete collar, resolving the drainage failure without disturbing the retaining wall's structural integrity.
The team also restored the drainage inlet and sidewalk, and backfilled a void at the top of the retaining wall to complete the repair — all while maintaining traffic control on an active freeway.
- 1st
- First Emergency project supporting a Hospital
- 60'
- Retaining wall supported
- 2
- Repair locations: retaining wall and sidewalk DI
Scope of Work

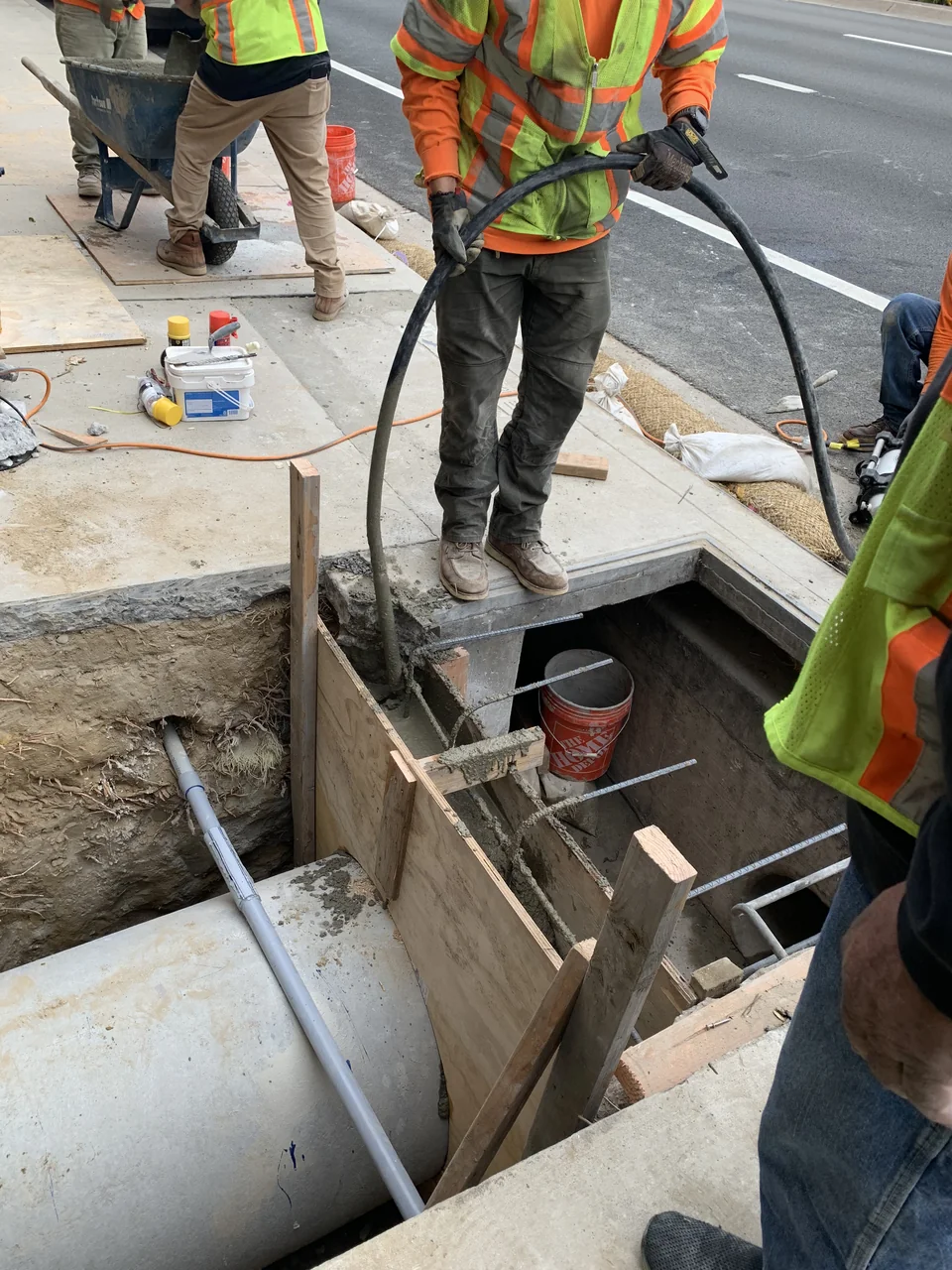

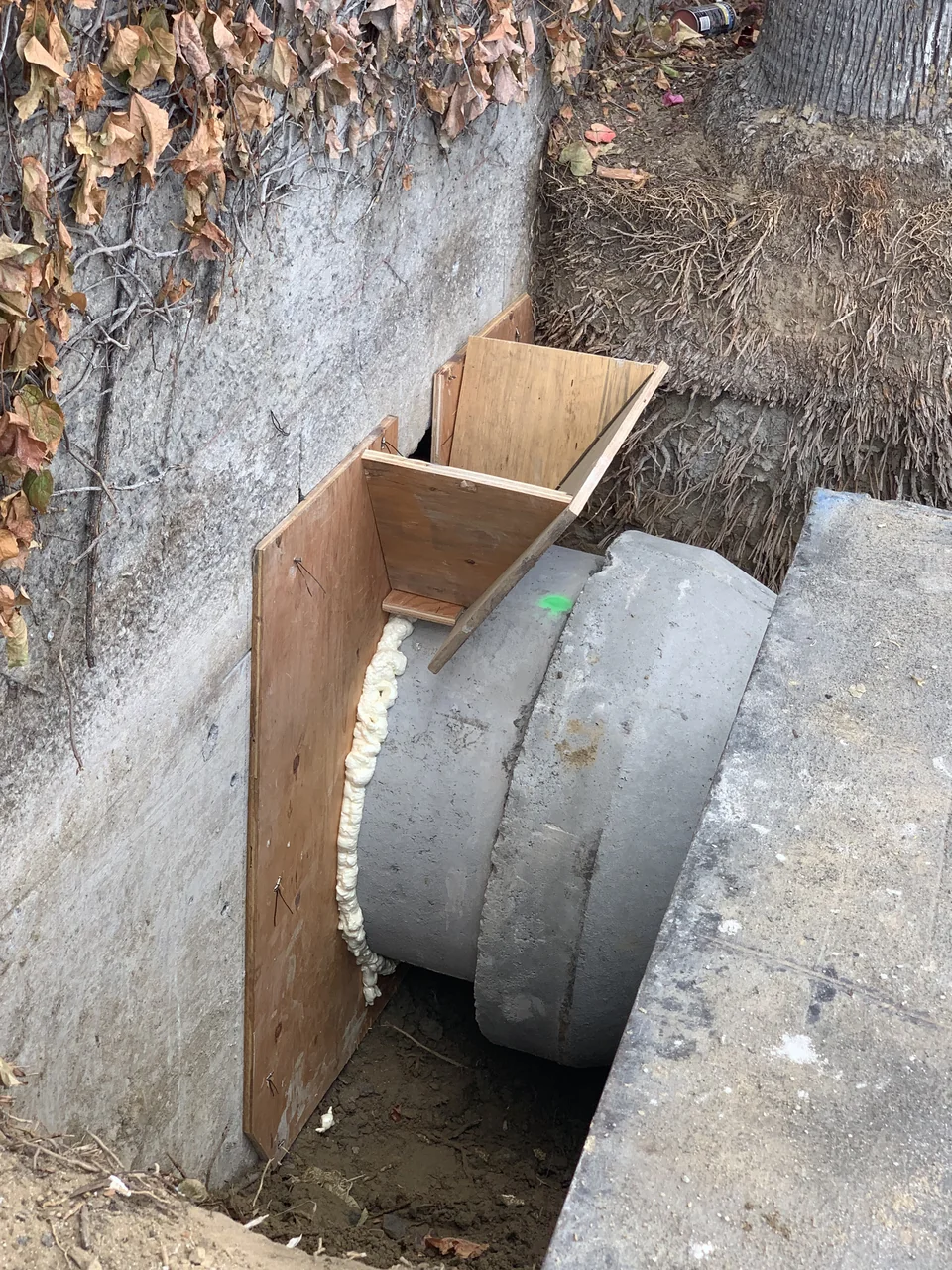

Damaged drainage pipe removal and replacement- Concrete collar installation

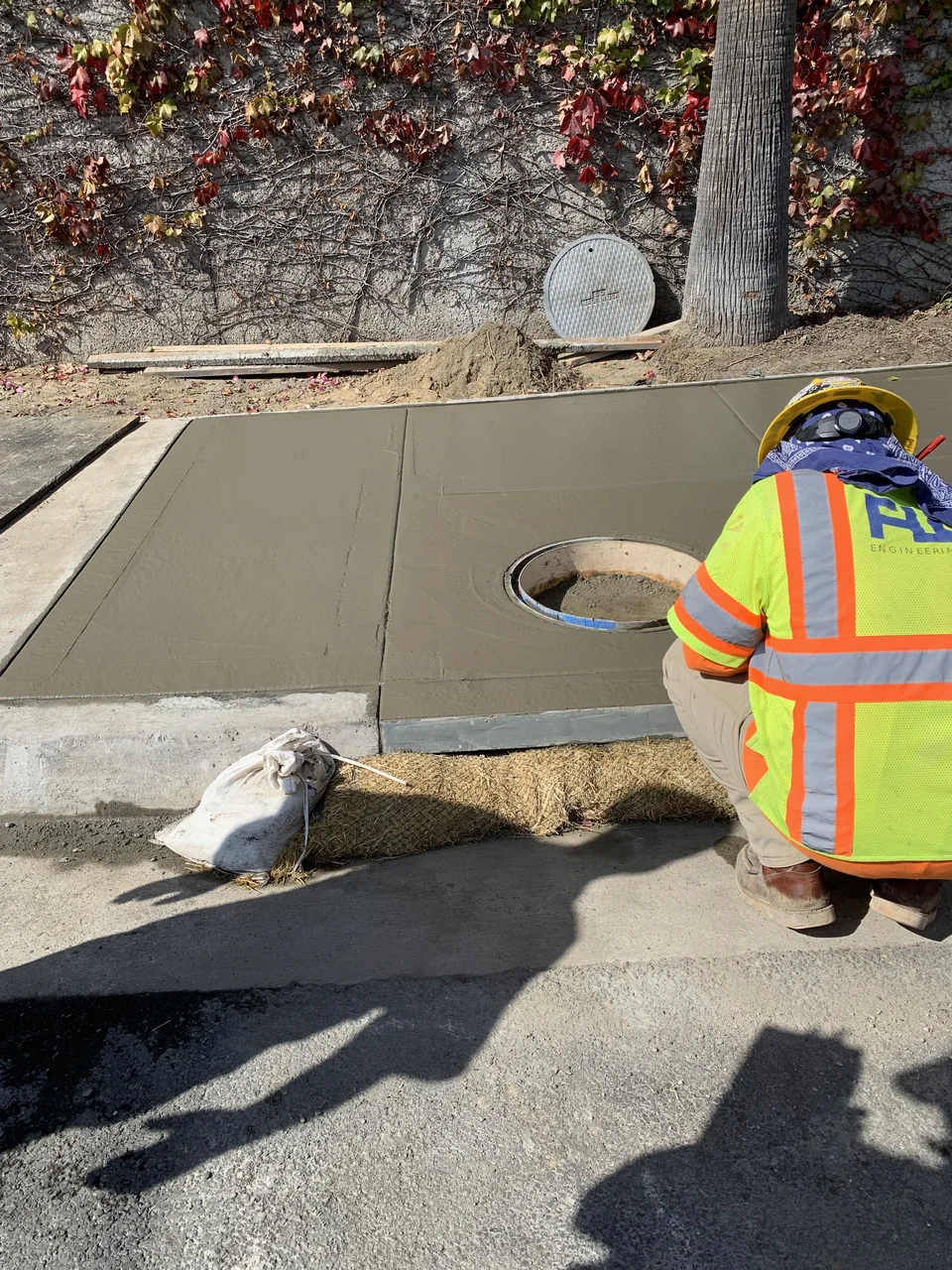

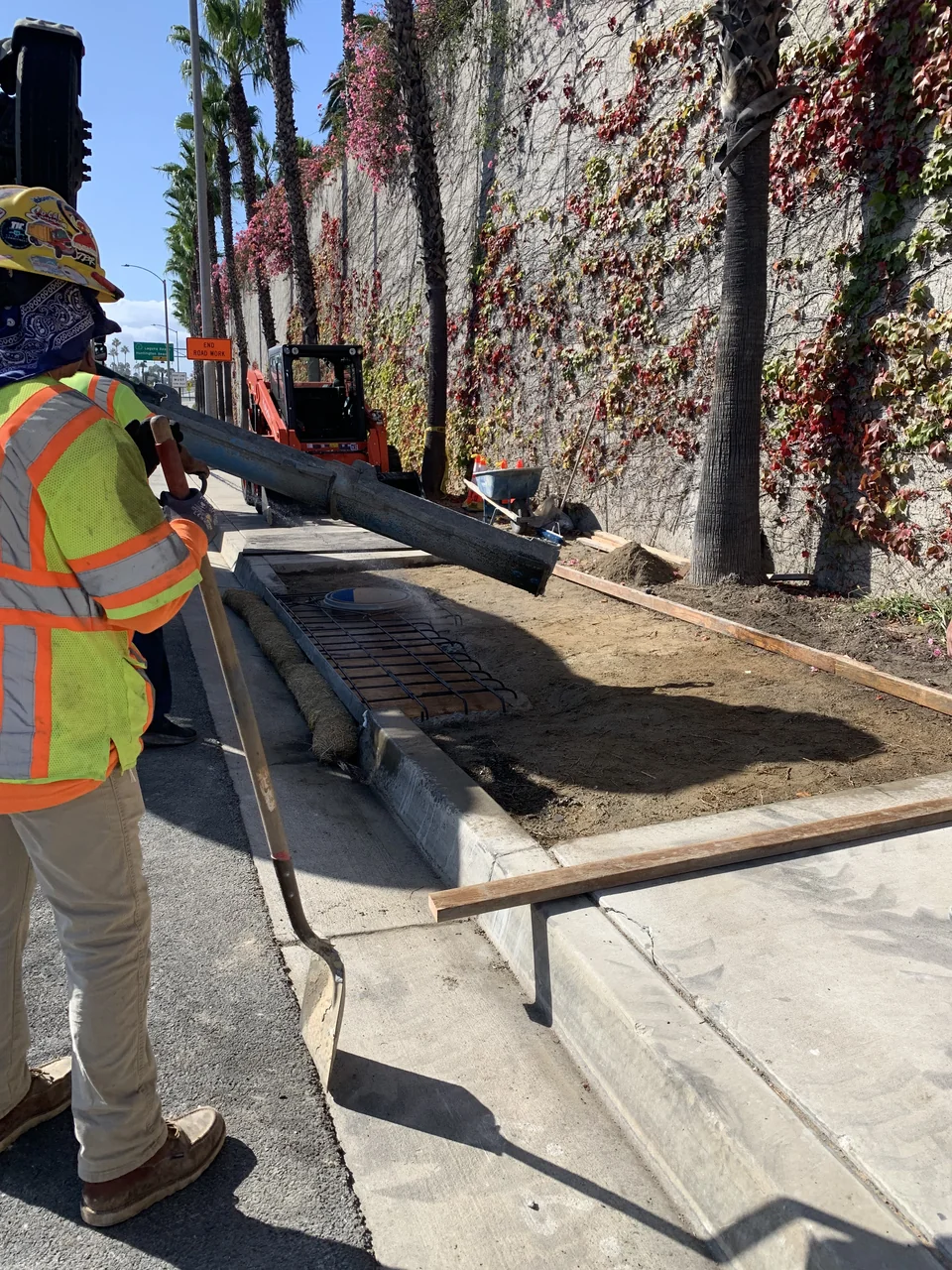

- Drainage inlet (DI) lid removal and replacement

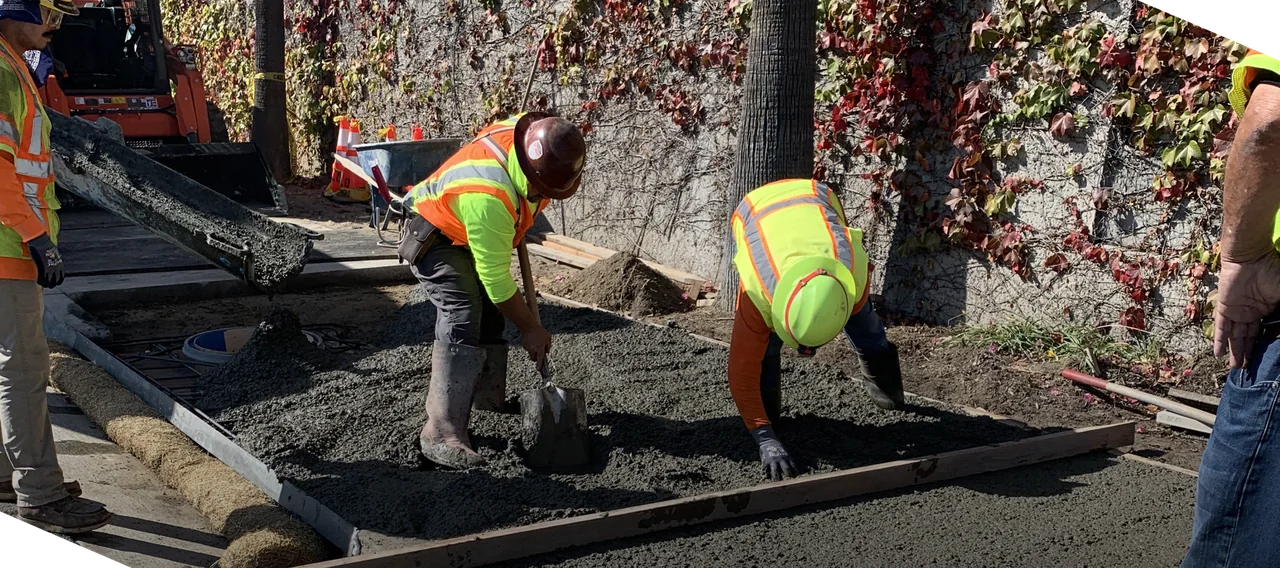

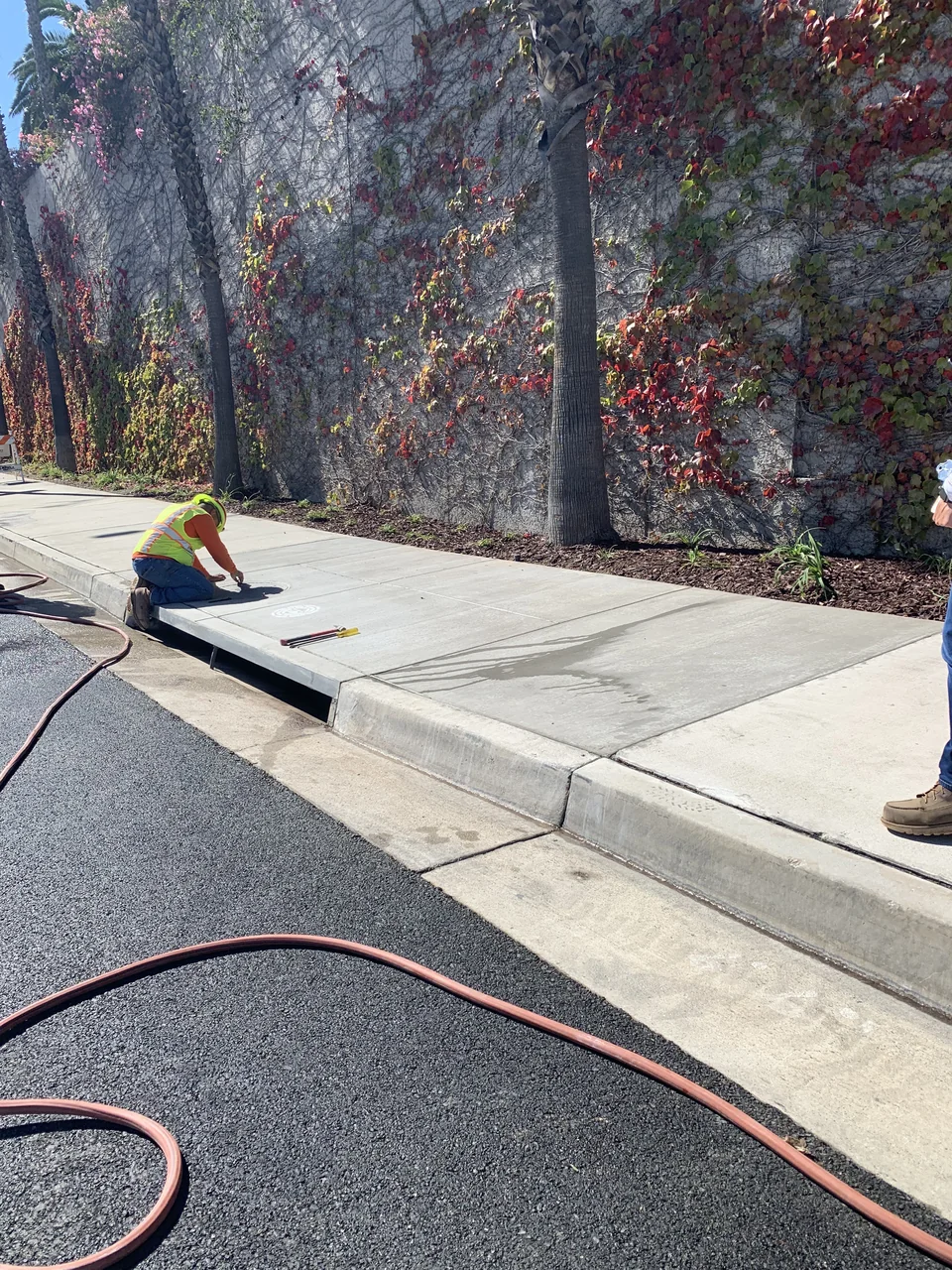

- Sidewalk repair around the damaged pipe
- Retaining wall slurry backfill and stabilization

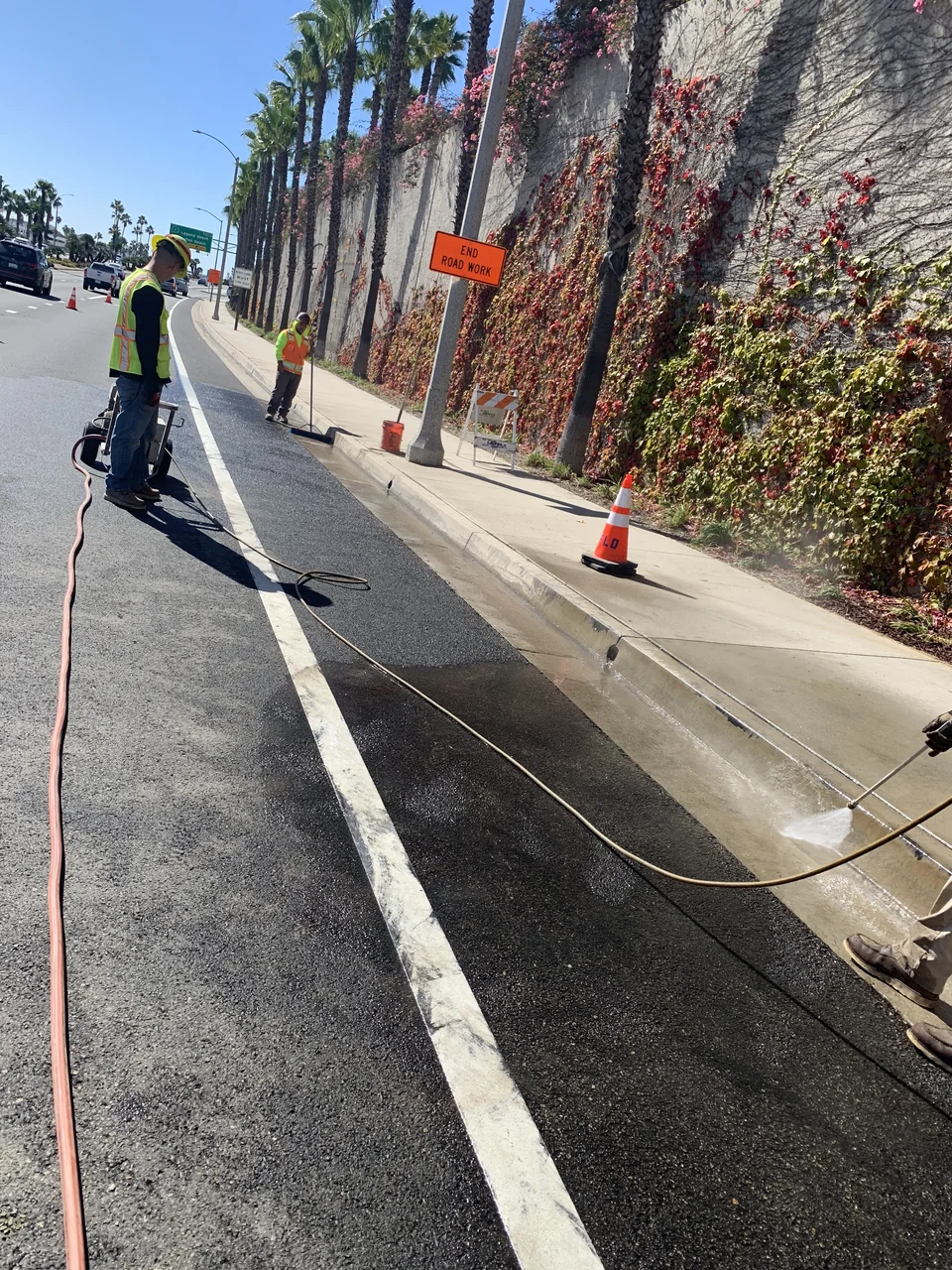

- Traffic control and lane closures
